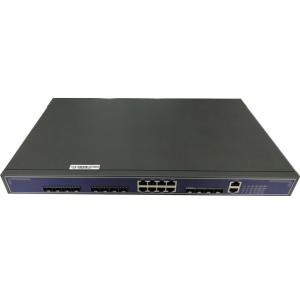

8 PON Ports GPON EPON OLT Optical Line Terminal
Model NO:JZF-3008
Main Features of OLT Optical Line Terminal:
*1U 19 inch standard box EPON OLT with 8 PON ports;
*Compliant with IEEE802.3ah YD/T1475-2006;
*QoS based on port, VID, TOS and MAC address(32K Mac address);
*Support priority queue scheduling;
*support SP, WRR or SP + WRR scheduling algorithm;
*Support 4096 VLAN, transparent transmission and conversion,
support VLAN stacking (QinQ);
*Support 32K MAC’s line speed learning and aging, support MAC
address restriction;
*Support PON line AES and triple churing encryption;
*Support Dynamic Bandwidth Allocation (DBA);
*Support remote software upgrade;
*Two power supply redundancy design;
| Technical Parameters for GPON EPON OLT Optical Line Terminal |
| Items | Unit | Specifications |
| PON standard | | EPON IEEE802.3ah |
| PON interface | | 8*EPON SFP Ports (PX20+), Receiving sensitivity: ≤-30dBm(Saturation
Optical -6dBm). Power, Transmitting optical power: +2～+7dBm Transmission distance: 20KM. Max splitting ratio1:64 |
| Speed | Upstream 1.25G Downstream 1.25G |
| Wavelength | nm | Tx1310, Rx 1490 |
| Uplink | GE | 8 copper ethernet ports 10/100/1000M auto-negotiation |
| SFP | 4 SFP(GE)/ 4*SFP+(10GE) auto-detection |
| Management Ports | | 1*10/100BASE-T out-band port, 1*CONSOLE port |
| Backplane | Gbps | 128 |
| MAC table | K | 32 |
SpanningTree protocol | | Support IEEE 802.1d (STP), 802.1w (RSTP) spanning tree protocols |
| QoS | | Support 802.1p priority queue scheduling Support SPWRR and SP+WRR scheduling algorithms |
| Operating condition | ℃ | Operating temp: -5 ~ +55 |
| Storing condition | ℃ | Storing temp: -40 ~ +85 |
| Humidity | % | 5~90(non-condensing) |
| Power consumption | W | ≤50 |
| Dimension | mm | 440mm×300mm×44mm(L×W×H) |
| Net weight | Kg | 3.7Kg |
| Packing Information: |
| Quantities: | 1pcs for each carton |
| Gross weight: | 4.8Kg for each carton |
| Carton size: | 630x440x140mm (LxWxH) |
 |
|
